14-in-1 USB-C Docking Station, Triple Display, 10Gbps

Description

This product comes in multiple options - please select the option you need before placing your order. Expand your laptop connectivity with this 14-in-1 docking station featuring triple display support. It offers high-speed data transfer and multiple ports for peripherals.

Features

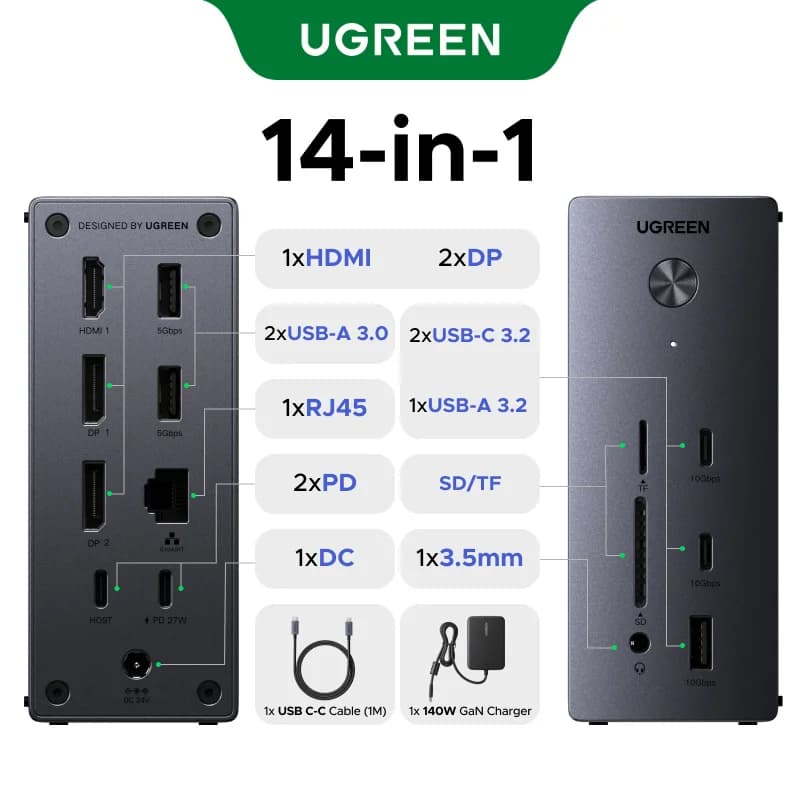

• Provides 14 ports including HDMI and DP
• Supports triple display output configurations

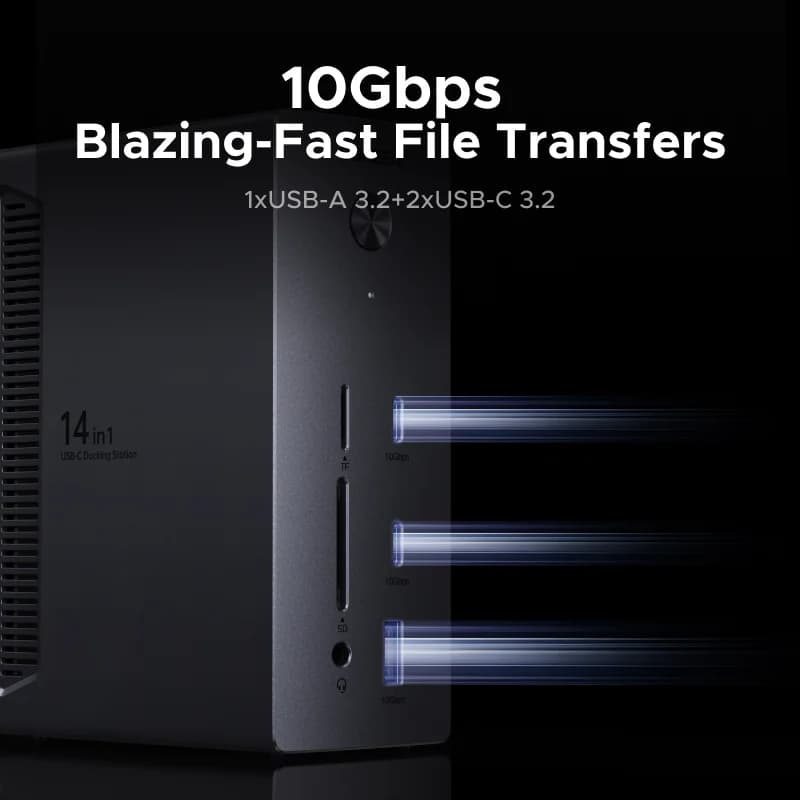

• Features USB 3.2 Gen2 for 10Gbps speed
• Includes RJ45 ethernet and card readers
• Supports PD charging up to 100W input

Specification

• Compatible Systems: Windows,Linux,Chrome OS
• Compatible PC Devices: Laptop
• Material: Others,Plastic,Metal
• Funtion: Card Reader,RJ45,DP,3.5mm,USB-A,USB-C,Charging,HDMI-Compatible
• Standard: USB 3.2 Gen2
• Interface Type: USB Type-C
• Ports: 14
• Note: 2 different models, please check the picture carefully before you make the payment.
• Model 1: 2xHDMI+1xDP Video Ports
• Model 2: 2xDP+1xHDMI Video Ports
• Product Name: USB-C HUB, USB HUB, Docking Station, USB Splitter
• Plug Type: US/EU/UK Plug, all in the package.
• USB-C Host: USB3.2 Gen2 standard, 10Gbps. Support DP1.4, PD3.0.
• DC-In Port: 5.5x2.5mm, support DC 24V, DC140W.
• 2xHDMI Ports: Support HDMI2.0, 4K60Hz Max, backward compatible with 4K30Hz, 2560x1440 144Hz/120Hz/60Hz, 1080P240Hz/180Hz/144Hz/120Hz/60Hz, 720P, 480P.

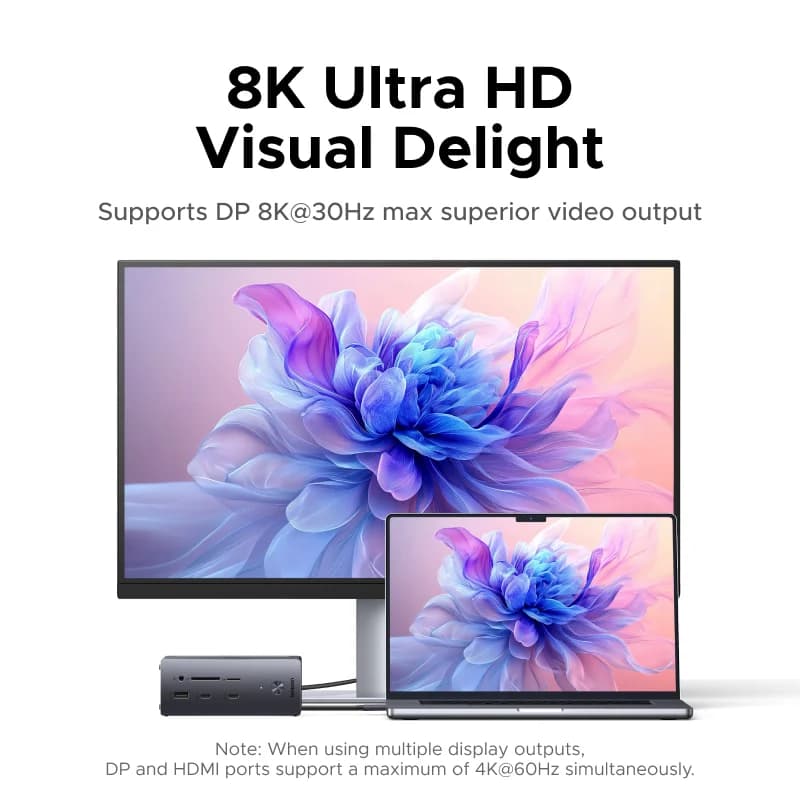

• 1xDP Port: Support DP1.4, 8K30Hz Max, backward compatible with 4K120Hz/60Hz, 2K240Hz/144Hz/120Hz/60Hz, 1080P240/120/60Hz, 720P, 480P.
• 1x3.5mm Port: Headset and microphone integrated, 4PIN interface, support line control, independent sound card interface.
• 1xUSB-A 10G Port: USB3.2 Gen2 standard, 10Gbps Max.
• 2xUSB-A 5G Ports: USB3.2 Gen1 standard, 5Gbps Max.
• 2xUSB-C 10G Ports: USB3.2 Gen2 standard, 10Gbps Max.
• SD&TF Ports: SD3.0 standard, 170MB/s Max, support 2 cards read and write simultaneously.
• 1xRJ45 Port: 1000/100/10Mbps
• 1xPD Port: PD3.0 27W Max. 15V/1.8A, 9V/3A, 5V/3A.

Available Variations

• Color: 2DP 1HDMI, 2HDMI 1DP
