8-in-1 Thunderbolt 4 Docking Station with 8K Output

Description

This product comes in multiple options - please select the option you need before placing your order. This 8-in-1 Thunderbolt 4 docking station delivers high-speed data transfer and 8K video output for professional setups. It includes multiple ports for peripherals and requires a dedicated power adapter.

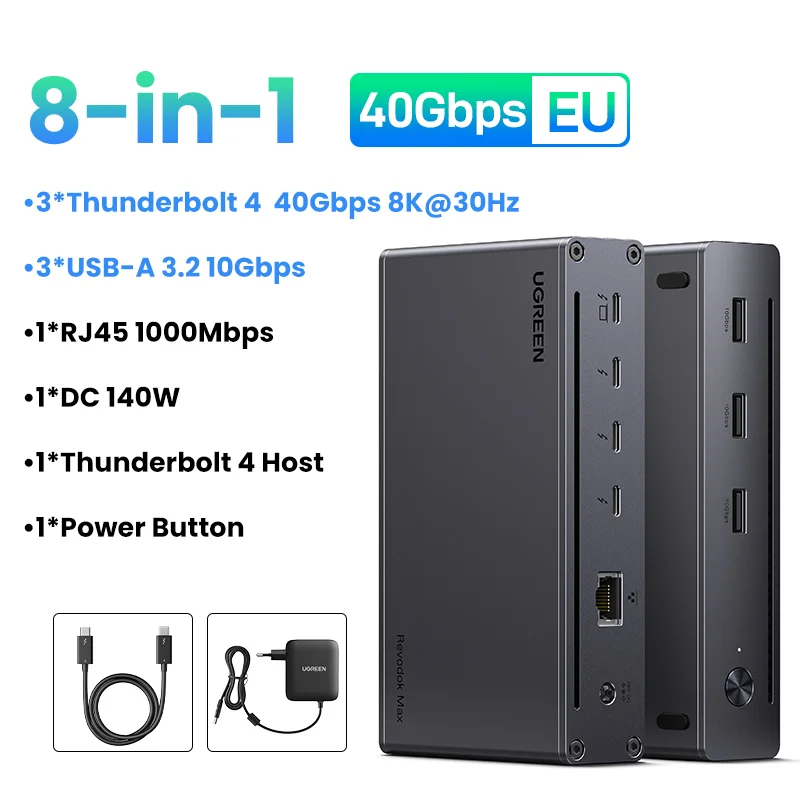

Features

• Supports Thunderbolt 4 standards with up to 40Gbps speed.
• Enables 8K video output at 30Hz via compatible ports.
• Includes three USB-A ports with 10Gbps data transfer.
• Features an RJ45 port for wired Ethernet network connections.
• Requires a 140W DC power adapter for operation.

Specification

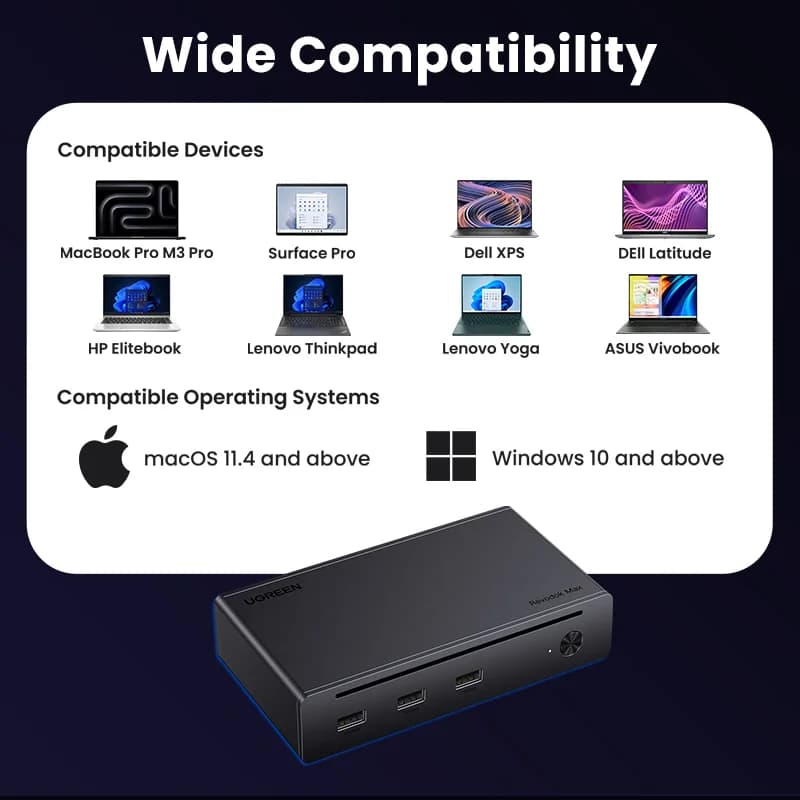

• Compatible Systems: Windows,MacOS,Linux, Windows 10 (20H2) or later/macOS 11.4 or later
• Compatible PC Devices: Laptop
• Material: Plastic,Metal,aluminum,others
• Funtion: RJ45,Thunderbolt,Charging
• Standard: Thunderbolt4
• Ports: 8
• Interface Type: USB Type-C
• Plug Type: EU
• Product Name: Docking Station, USB HUB, USB-C HUB, Thunderbolt Dock
• Power Adapter: EU Plug Type Adapter (DC 24V/5.83A, 140W)
• Cable: 0.8M Thunderbolt 4 Cable
• Input Port (TBT4): USB-C port, compliant with Thunderbolt 4, up to 40Gbps; compatible with USB4 and Thunderbolt 3; supports DP 1.4, daisy-chaining and PD charging up to 85W; up to 32Gbps PCIe bandwidth and 8K@30Hz video output; for host connection.
• Input Port (DC): 5.5 x 2.5mm DC jack; connects to the power adapter to power the dock and charge the host device.
• Output Ports (3xTBT4): USB-C ports, compliant with Thunderbolt 4, up to 40Gbps; compatible with USB4 and Thunderbolt 3; support DP 1.4, daisy-chaining, up to 5V/3A power output per port, 32Gbps PCIe bandwidth and 8K@30Hz video output; for displays and USB devices.
• Output Ports (3xUSB-A 3.2 Gen 2): Up to 10Gbps data transfer; backward compatible with USB 3.0/2.0/1.1; supports BC 1.2 charging; for USB peripherals and storage devices.
• Output Ports (RJ45): Supports up to 1Gbps Ethernet, backward compatible with 100/10Mbps; compliant with IEEE 802.3/802.3u/802.3ab/802.3z/802.3x; for wired network connections.
• LED Indicator: Dual-color LED (Green/Blue); solid green when powered on, solid blue when connected to the host device.
• Power Button: Power On/Standby
• Power Supply: Requires a DC power adapter (24V/5.83A, 140W) to operate.
• Audio Formats: DTS, DTS-HD, Dolby Digital, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos.
• Audio Sampling Rate: Up to 96kHz/24-bit

Available Variations

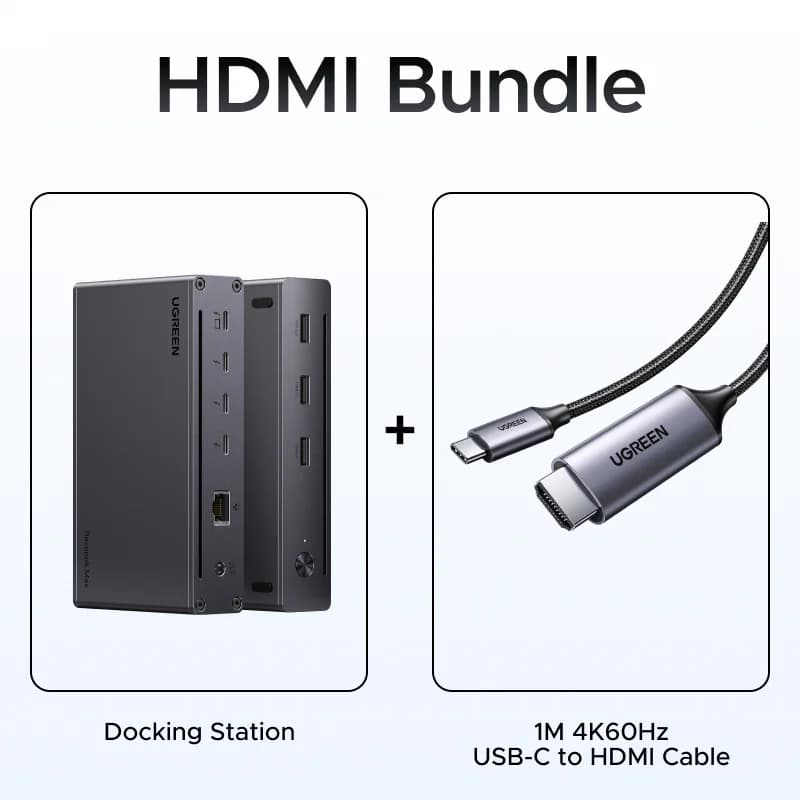

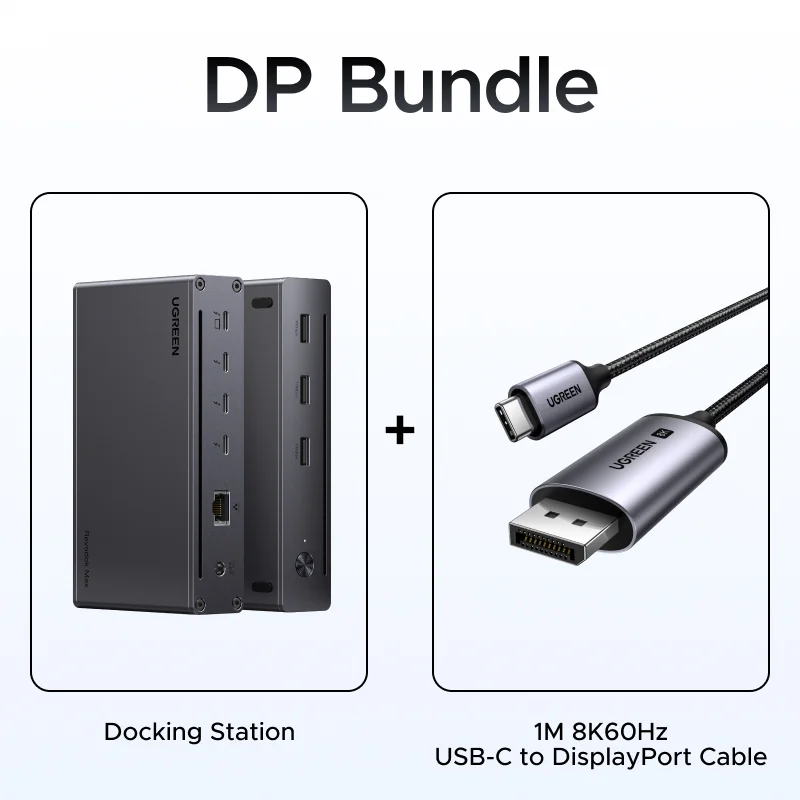

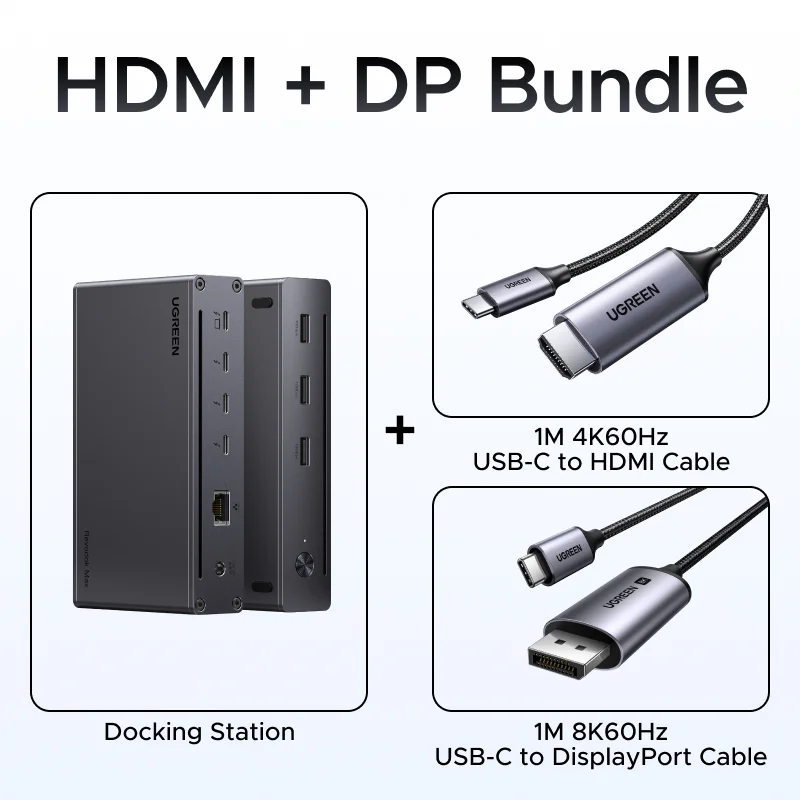

• Color: HDMI DP Bundle, DP Cable Bundle, Only Dock, HDMI Cable Bundle
