DisplayLink Docking Station with Dual 4K HDMI and DP

Description

This product comes in multiple options - please select the option you need before placing your order. Extend your screen setup with this DisplayLink docking station supporting dual 4K monitors. It provides multiple video outputs and high-speed connectivity for laptops.

Features

• Supports dual 4K@60Hz displays via HDMI/DP
• Includes RJ45 Ethernet and USB ports
• Delivers up to 100W PD charging power
• Requires driver installation for video output
• Compatible with Windows, MacOS, and Linux

Specification

• Compatible Systems: Windows,MacOS,Linux
• Compatible PC Devices: Laptop
• Material: Others,Plastic,Metal
• Funtion: RJ45,DP,USB-A,USB-C,Charging,HDMI-Compatible
• Standard: USB 3.1 Gen2
• Ports: 9
• Interface Type: USB Type-C
• Product Name: Docking Station, USB HUB, USB C HUB, USB Splitter
• Cable: 1M Full Function USB-C to USB-C Cable
• Input Port - USB-C (Host): USB3.1 Gen2, up to 10Gbps data transfer; backward compatible with earlier USB standards; supports PD 3.0 for host data transfer and charging.
• Input Port - PD Input: Supports PD 3.0, up to 100W (20V/5A) power input; connects to a power adapter for host charging.
• Output Ports (2 x USB-A 3.1 Gen 2): Up to 10Gbps data transfer; backward compatible with USB 3.0/2.0/1.1; supports BC 1.2 charging.
• Output Port (1 x USB-C 3.1 Gen 2): Up to 10Gbps data transfer; backward compatible with USB 3.0/2.0/1.1; supports BC 1.2 charging.
• Output Ports (2 x HDMI 2.0): Up to 18Gbps video bandwidth; supports HDCP 1.4; up to 4K@60Hz, 2K@120Hz or 1080P@144Hz; backward compatible with lower resolutions; HDR not supported.
• Output Ports (2 x DisplayPort 1.2): Up to 16.2Gbps video bandwidth; supports HDCP 1.4; up to 4K@60Hz, 2K@120Hz or 1080P@144Hz; backward compatible with lower resolutions; HDR not supported.
• Output Ports (1 x RJ45): Supports 10/100/1000Mbps Ethernet, IEEE 802.3 compliant; supports full/half-duplex and auto-negotiation.
• LED Indicator: Solid white when powered on.

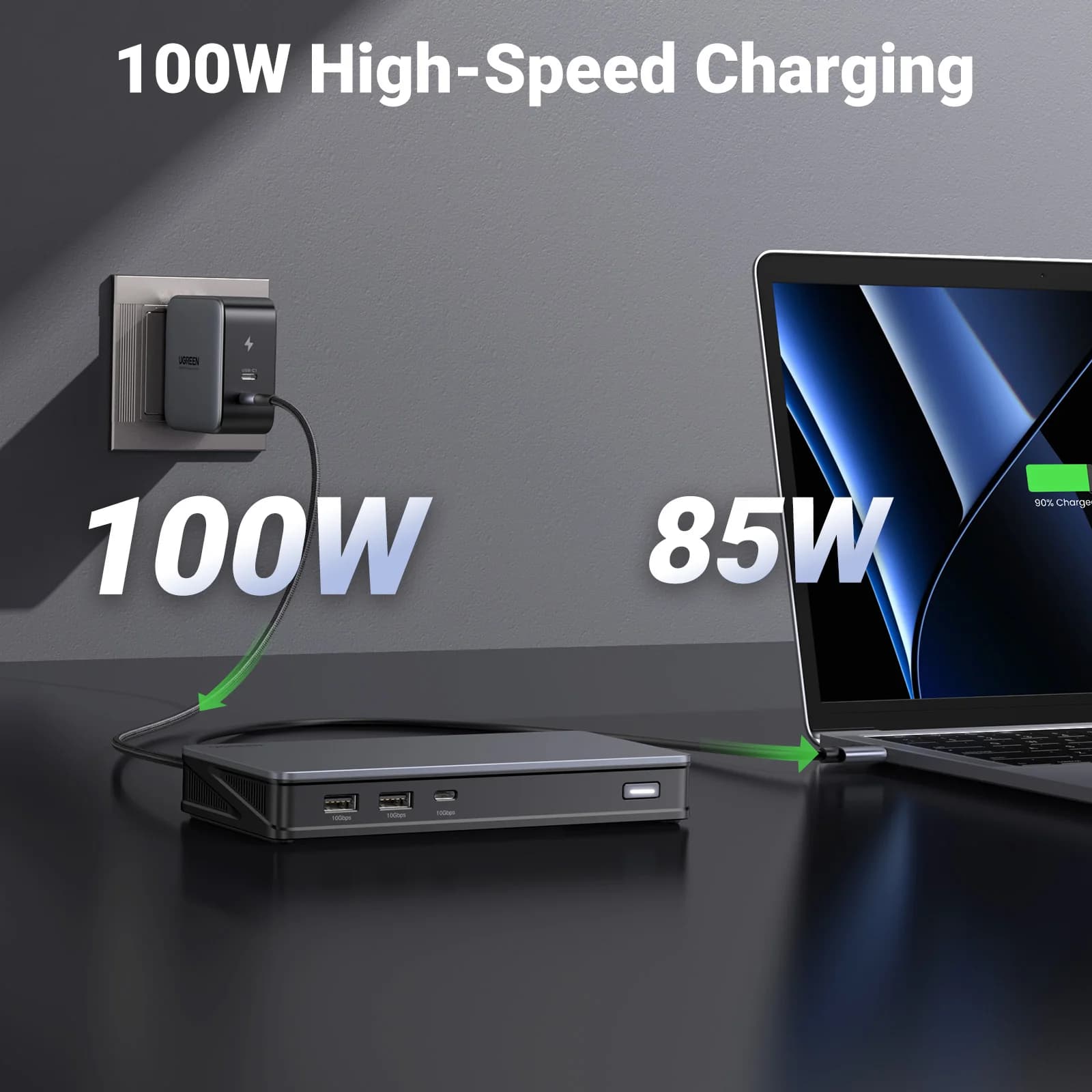

• Power Supply: Supports PD 3.0, with 15W reserved for the dock and up to 85W host charging.
• Display Modes: Supports Mirror and Extend modes on both Windows and macOS, with up to 4K@60Hz per display output.
• Video Output Configuration: Features 4 video ports across 2 display channels (HDMI 1/DP 1 and HDMI 2/DP 2), supporting up to 2 simultaneous displays. Supported combinations: HDMI 1 + HDMI 2, HDMI 1 + DP 2, DP 1 + DP 2, or DP 1 + HDMI 2.
• Driver Installation: Driver installation is required for HDMI/DP video output and Ethernet functionality. The driver download link is available on the built-in USB drive.

Available Variations

• Color: EU Charger Bundle, KR Charger Bundle, US Charger Bundle, 9-in-1 Docking
