Thunderbolt 4 Docking Station 8-in-1 40Gbps

Description

This product comes in multiple options - please select the option you need before placing your order. This eight-in-one docking station expands your laptop capabilities via Thunderbolt 4. It supports high-resolution video output and fast data transfer.

Features

• Delivers up to 40Gbps data transfer speed
• Includes three Thunderbolt 4 output ports
• Supports 8K video output at 30Hz
• Features a gigabit Ethernet port
• Requires external power adapter to operate

Specification

• Compatible Systems: Windows,MacOS, Windows 10 (20H2) or later/macOS 11.4 or later
• Compatible PC Devices: Laptop
• Material: Others,aluminum,Metal,Plastic
• Funtion: USB-A,USB-C,Thunderbolt,Charging
• Standard: Thunderbolt4
• Interface Type: USB Type-C
• Ports: 8
• Plug Type: EU
• Product Model: UGREEN Revodok Max 208 Docking Station
• Product Name: 8-in-1 Docking Station / Thunderbolt 4 Docking Station / USB-C HUB / USB Expander

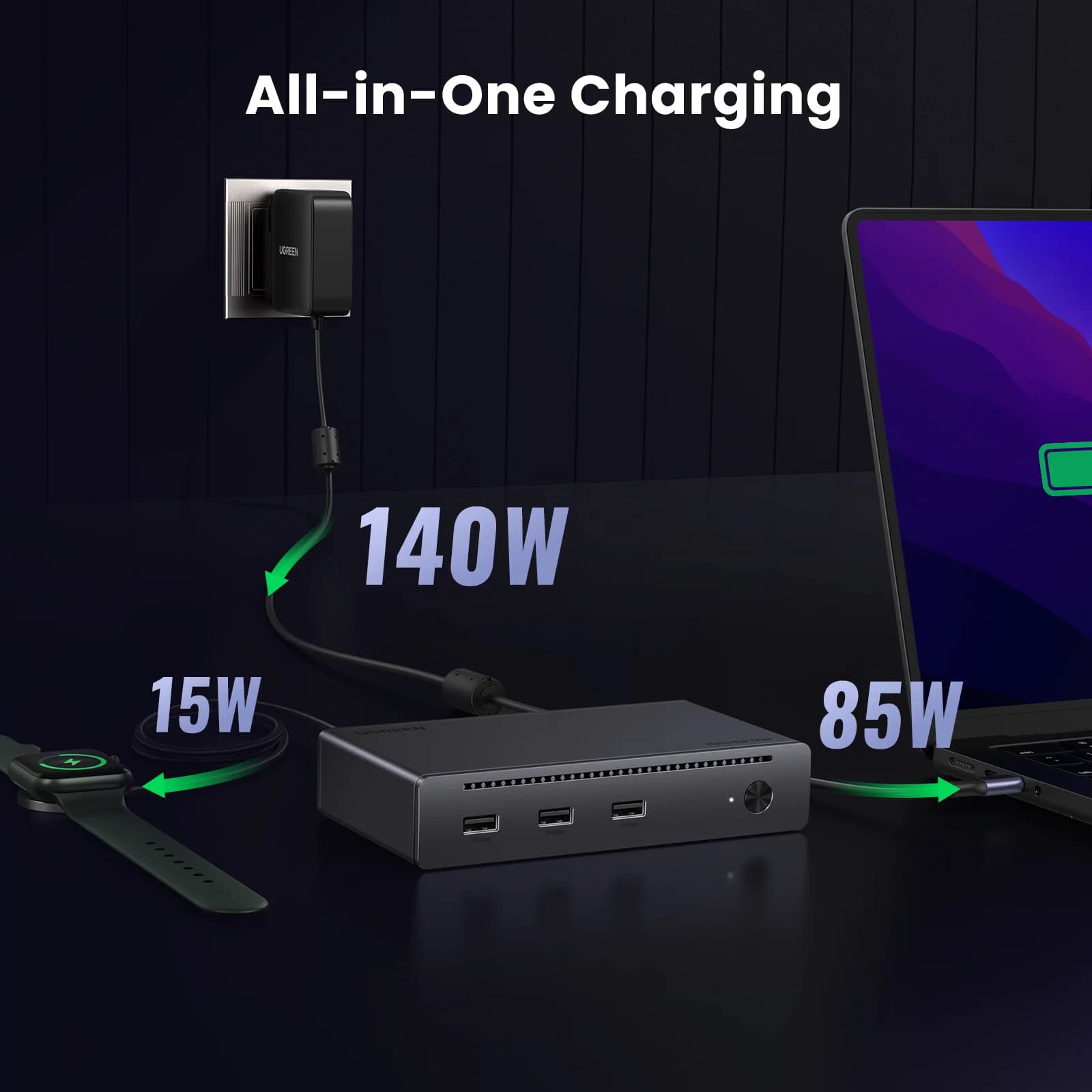

• Power Adapter: EU Plug Type Adapter (DC 24V/5.83A, 140W)
• Cable: 0.8M Thunderbolt 4 Cable
• Input Port (TBT4): USB-C port, compliant with Thunderbolt 4, up to 40Gbps; compatible with USB4 and Thunderbolt 3; supports DP 1.4, daisy-chaining and PD charging up to 85W; up to 32Gbps PCIe bandwidth and 8K@30Hz video output; for host connection.
• Input Port (DC): 5.5 x 2.5mm DC jack; connects to the power adapter to power the dock and charge the host device.
• Output Ports (3xTBT4): USB-C ports, compliant with Thunderbolt 4, up to 40Gbps; compatible with USB4 and Thunderbolt 3; support DP 1.4, daisy-chaining, up to 5V/3A power output per port, 32Gbps PCIe bandwidth and 8K@30Hz video output; for displays and USB devices.
• Output Ports (3xUSB-A 3.2 Gen 2): Up to 10Gbps data transfer; backward compatible with USB 3.0/2.0/1.1; supports BC 1.2 charging; for USB peripherals and storage devices.

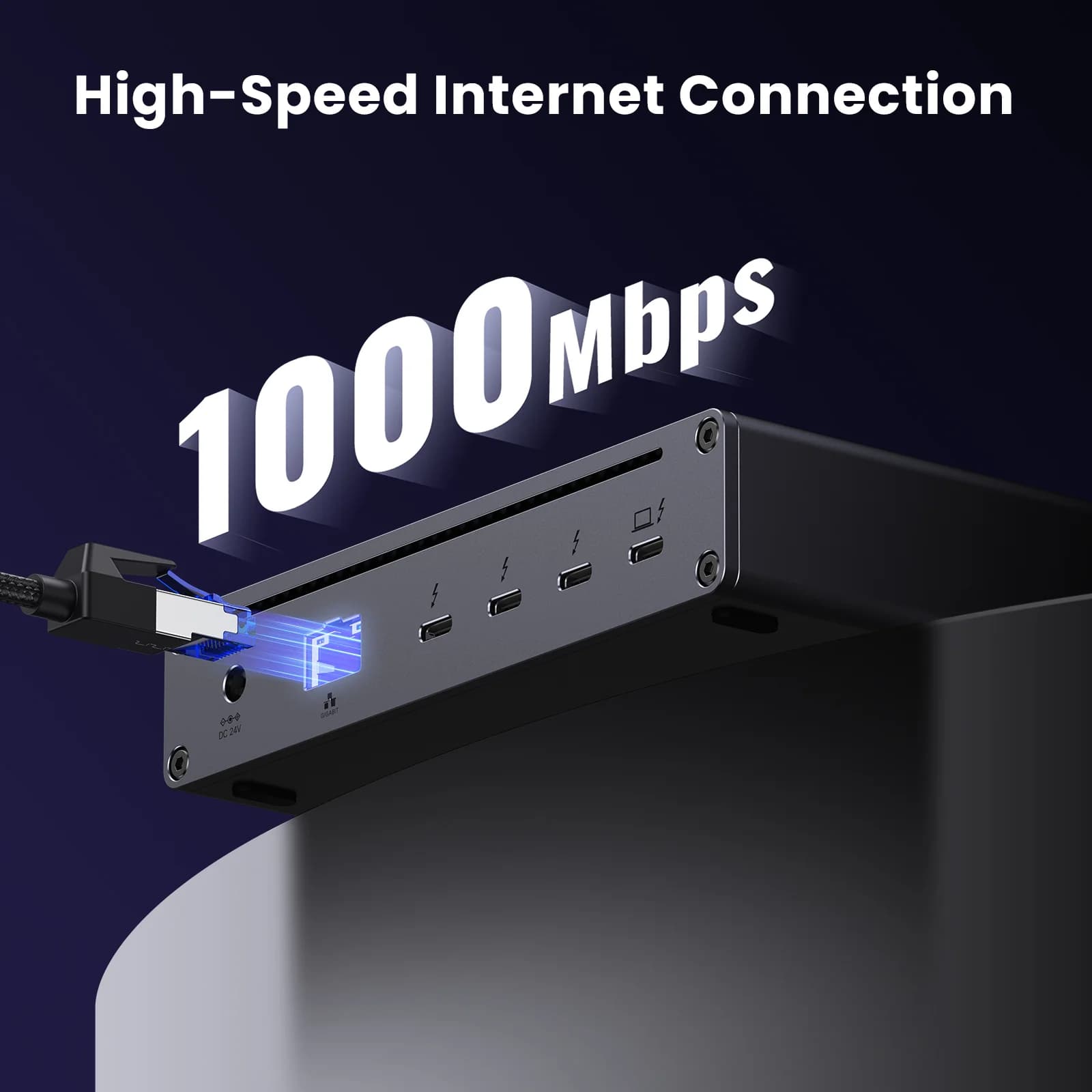

• Output Ports (RJ45): Supports up to 1Gbps Ethernet, backward compatible with 100/10Mbps; compliant with IEEE 802.3/802.3u/802.3ab/802.3z/802.3x; for wired network connections.
• LED Indicator: Dual-color LED (Green/Blue); solid green when powered on, solid blue when connected to the host device.
• Power Button: Power On/Standby
• Power Supply: Requires a DC power adapter (24V/5.83A, 140W) to operate.
• Audio Formats: DTS, DTS-HD, Dolby Digital, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos.
• Audio Sampling Rate: Up to 96kHz/24-bit

Available Variations

• Color: DP Cable Bundle, HDMI DP Bundle, HDMI Cable Bundle, Only Dock
