Thunderbolt 5 Docking Station 120Gbps 8K

Description

Expand your laptop connectivity with this high-speed Thunderbolt 5 docking station. It supports 8K resolution and fast data transfer for compatible Windows and macOS systems.

Features

• Features thirteen ports including Thunderbolt 5 outputs.

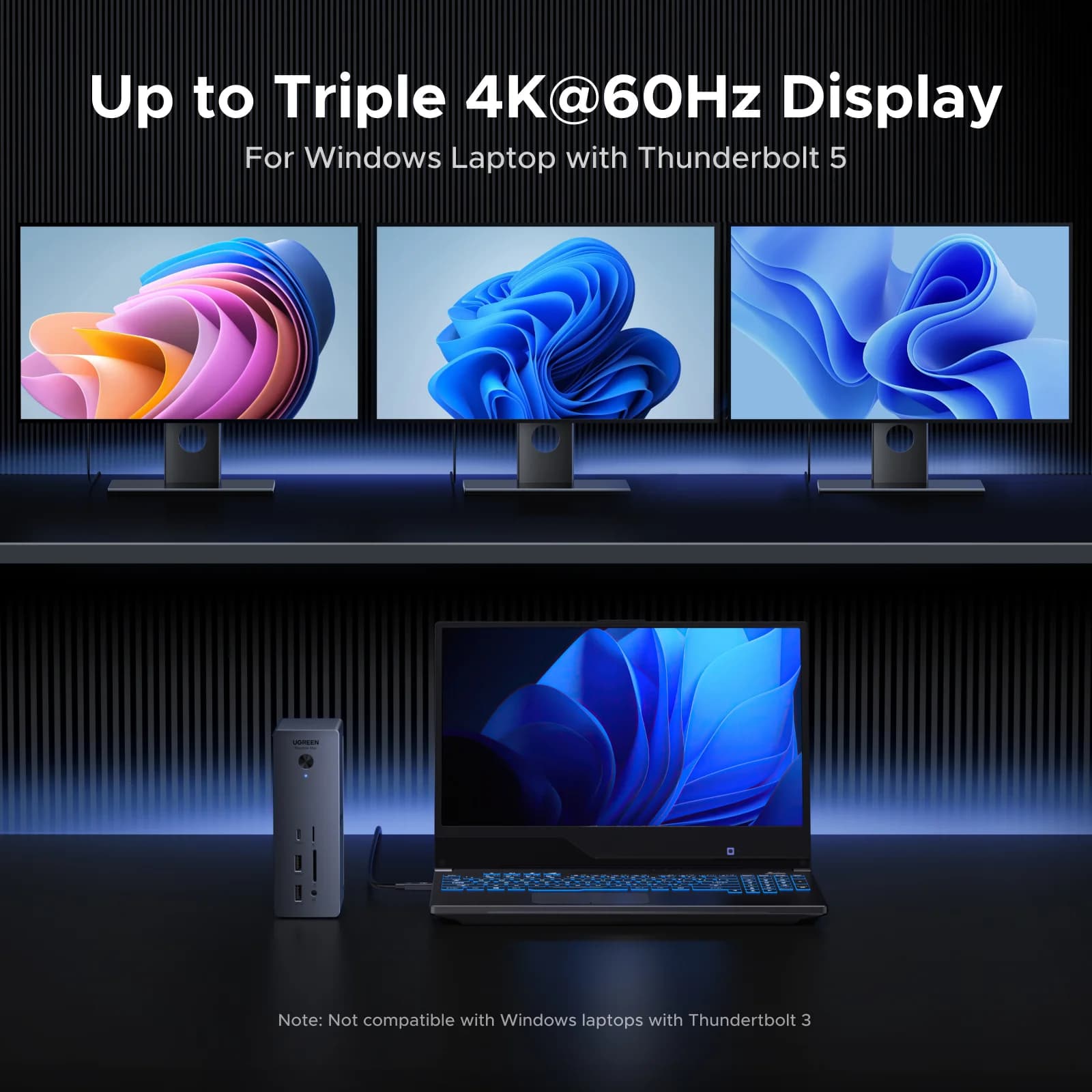

• Supports single-port resolution up to 8K at 60Hz.
• Includes RJ45, SD/TF card readers, and audio jack.
• Requires included 180W DC adapter for operation.
• Compatible with Windows 11 and macOS 14.5 or later.

Specification

• Compatible Systems: Windows,MacOS
• Compatible PC Devices: Laptop
• Material: Others,Alloyed steel,Metal,Plastic,aluminum
• Funtion: RJ45,USB-A,Thunderbolt,Charging,USB-C,3.5mm,Card Reader
• Standard: Thunderbolt5
• Interface Type: USB-C HUB

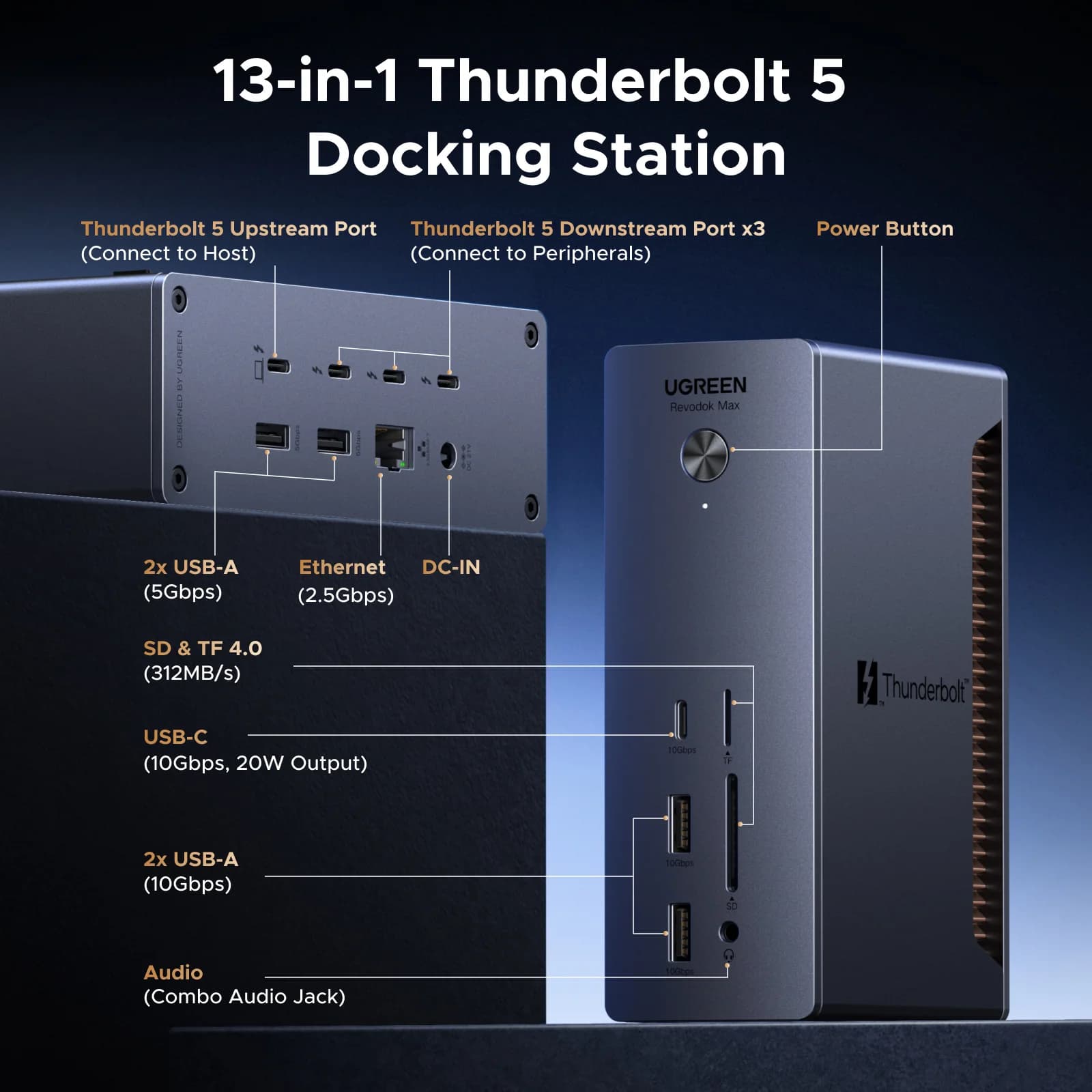

• Ports: 13
• 1xTBT5 Input Port: Support Thunderbolt 5 standard protocol, backward compatible with Thunderbolt 4/3.

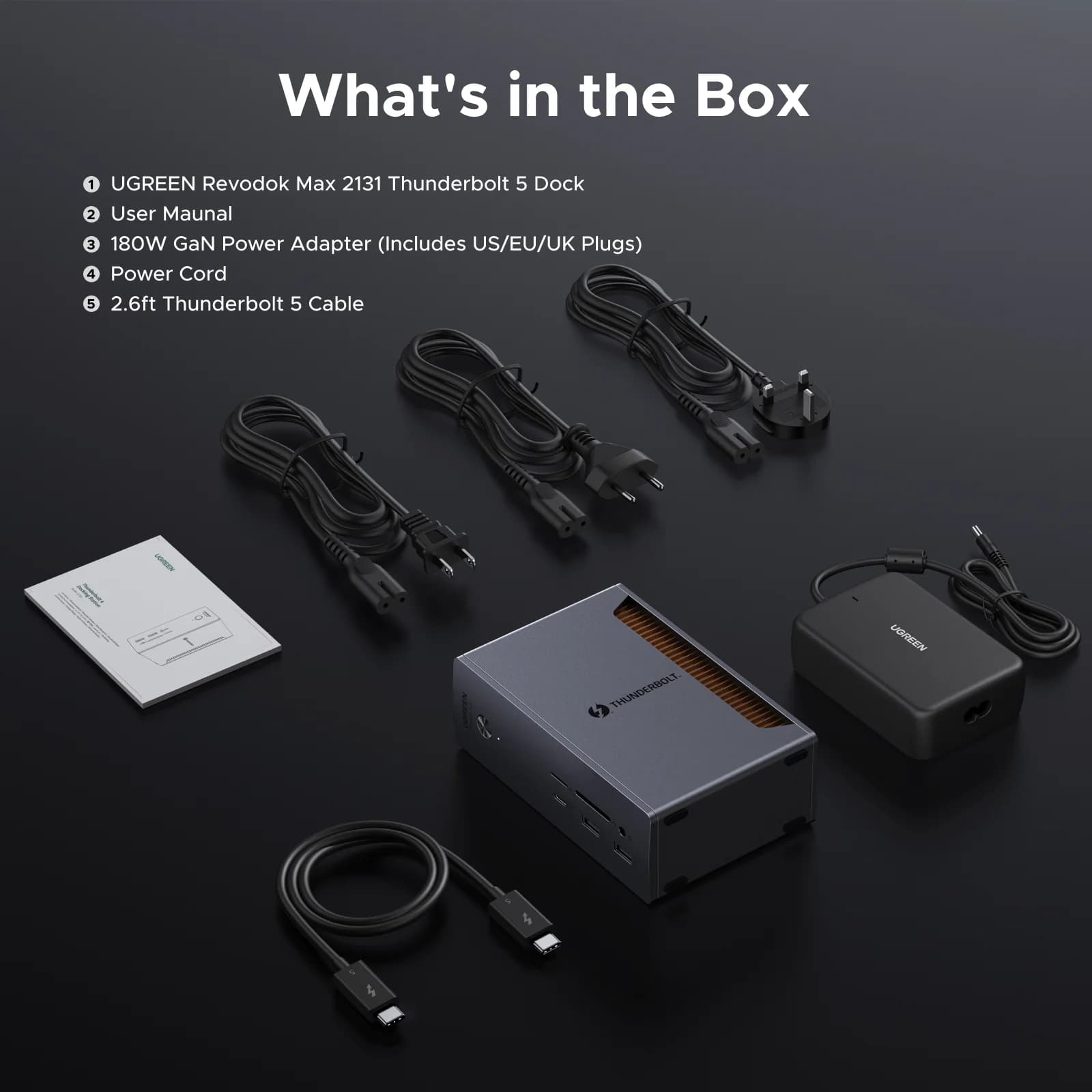

• 1xDC Input Port: 5.5*2.5mm, 100V~240V wide voltage input, DC 21V/8.57A 180W adapter (provided), used to power the docking station and computer.
• 3xTBT5 Output Ports: Support Thunderbolt 5 standard protocol, backward compatible with Thunderbolt 4/3. The first port of TBT5 supports 30W (5V/3A, 9V/3A, 20V/1.5A), the second/third ports of TBT5 support a maximum output power of 5V/3A, the PCIe protocol bandwidth can reach 64Gbps, and the single-port resolution can be up to 8K@60Hz.
• 2xUSB3.2 A Ports: USB3.2 Gen2, 10Gbps, backward compatible with USB3.0/2.0/1.1, support BC1.2.
• 1xUSB3.2 C Port: USB3.2 Gen2, 10Gbps, backward compatible with USB3.0/2.0/1.1, support BC1.2.
• 2xUSB3.0 A Ports: USB3.0, 5Gbps, backward compatible with USB2.0/1.1, support BC1.2.
• 1xRJ45 Port: Support 2500Mbps, backward compatible with 1000/100/10Mbps.
• SD/TF Ports: Support SD4.0, 312MB/s, backward compatible with SD3.0, support 2 cards read & write simultaneously.
• 1x3.5mm Port: Support two-channel stereo audio input and output, supports line control, supports CTIA/OMTP standard four-level headphones.
• Indicator Light: The green light is always on after the power is connected, and the green light turns to blue light when the signal is connected.
• Button Function: Power button: Turn on/off all functions of the dock.
• Power Supply Mode: Must be powered via the included DC adapter (21V/8.57A, 180W) to operate. Not compatible with external PD (Power Delivery) chargers.
• Systems: Supports Windows 11 (version 23H2 or later) and macOS 14.5 or later. Other operating systems are not supported.
• Note 1: Not compatible with USB-C extension cables.
• Note 2: Must be used with a Thunderbolt 5 cable.
• Note 3: Not compatible with game consoles.
• Plug Type: EU/UK/US Plug, all in the package
