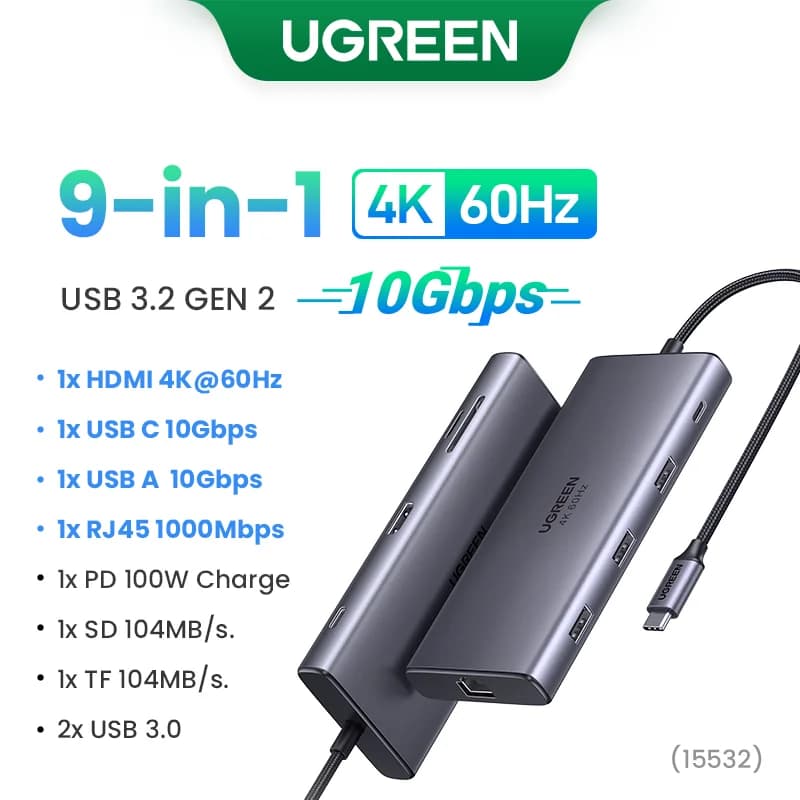

USB-C Hub with 4K HDMI, Ethernet, SD/TF, 100W PD

Description

Expand your laptop connectivity with this nine-port USB-C hub. It supports 4K video output, gigabit Ethernet, and fast charging.

Features

• Outputs 4K video at 60Hz via HDMI
• Includes gigabit Ethernet RJ45 port
• Supports 100W power delivery input
• Reads SD and TF cards simultaneously
• Features multiple high-speed USB ports

Specification

• Compatible Systems: Windows,MacOS,Linux,Chrome OS,iOS,iPad OS,Android
• Compatible Game Console: NINTENDO SWITCH,Steam Deck,ROG Alloy,ROG X,Legion Go,MSI CLAW
• Compatible PC Devices: Laptop
• Material: Plastic,Metal,others,Alloyed steel
• Funtion: Card Reader,RJ45,USB-A,USB-C,Charging,HDMI-Compatible
• Standard: USB 3.2 Gen2
• Ports: 9
• Interface Type: USB Type-C
• Product Name: USB-C HUB / USB HUB / USB Splitter / Docking Staion / USB Expander
• Cable Length: 20cm braided cable
• 1 x USB-C (male): For connecting to a host device (laptop, tablet, smartphone, etc.). Compliant with the USB 3.2 Gen 2 standard, with a theoretical data transfer speed of up to 10 Gbps. Supports DP 1.4, allowing for video input resolutions up to 4K@60Hz (backward compatible with lower resolutions) and HDCP 2.2.
• 1 x PD-In: USB-C (female) port for connecting a PD power adapter. Supports the PD 3.0 standard with a maximum power input of 100W (20V/5A); compatible with 15V, 9V, and 5V voltage levels, and backward compatible with PD 2.0. Power allocation logic: A fixed 10W is reserved for the device's own operation. For dynamic power allocation: 5W is reserved if 0 < PD input ≤ 45W; 10W is reserved if 45W < PD input ≤ 90W; and 15W is reserved if PD input > 90W.
• 1 x HDMI-Out: Type-A port for connecting to a monitor or TV. Compliant with the HDMI 2.0 specification, it supports video output resolutions up to 4K@60Hz, with backward compatibility for 4K@30Hz, 2K@120Hz, 2K@60Hz, 1080P@144Hz, 1080P@120Hz, 1080P@60Hz, 720P, 480P, etc. It supports HDCP and HDR, but does not support CEC or ARC.
• 2 x USB-A: Labeled "5Gbps," these ports are for connecting USB devices (such as keyboards, mice, flash drives, hard drives, or cameras). They comply with the USB 3.0 specification, offering a theoretical data transfer rate of up to 5Gbps, and are backward compatible with USB 2.0/1.1. They also support the BC 1.2 standard.
• 1 x USB-C: Labeled "10Gbps," this port is for connecting USB devices (such as keyboards, mice, flash drives, hard drives, or cameras). It complies with the USB 3.2 Gen 2 standard, offering a theoretical data transfer rate of up to 10Gbps, and is backward compatible with USB 3.0/2.0/1.1. It also supports the BC 1.2 standard.
• 1 x USB-A: Labeled "10Gbps," this port is for connecting USB devices (such as keyboards, mice, flash drives, hard drives, or cameras). It complies with the USB 3.2 Gen 2 standard, offering a theoretical data transfer rate of up to 10Gbps, and is backward compatible with USB 3.0/2.0/1.1. It also supports the BC 1.2 standard.
• 1 x RJ45: Gigabit Ethernet port (without indicator lights) for network connectivity. It supports speeds up to 1000Mbps, with backward compatibility for 100/10Mbps, and adheres to network protocols including IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, and IEEE 802.3x.
• 1 x TF: For TF (microSD) cards. Compliant with the SD 3.0 standard, supporting transfer speeds of up to 160MB/s and simultaneous reading of two cards.
• 1 x SD: For SD cards. Compliant with the SD 3.0 standard, it supports transfer speeds of up to 160MB/s and allows for simultaneous reading of two cards.
• HDMI Output Modes: A+A (Mirroring), A+B (Extended)
• USB Current Limit: 2.5A total for 3x USB-A + 1x USB-C ports
• Variable Refresh Rate: Not supported
• Dolby Vision/Atmos: Supported
• USB-C Extension Cable: Not supported
