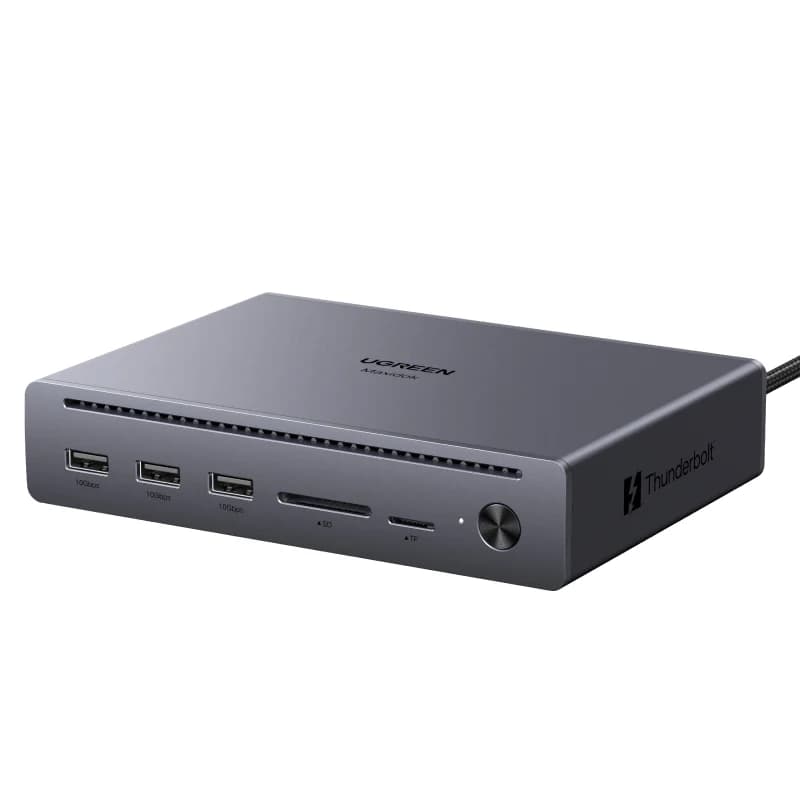

Thunderbolt 5 10-in-1 Docking Station with 120Gbps

Description

Enhance your workstation with this Thunderbolt 5 docking station offering high-speed connectivity. It supports dual 8K displays and extensive device expansion.

Features

• Delivers up to 120Gbps video bandwidth
• Supports dual 8K displays at 60Hz
• Includes SD and Micro SD card readers
• Features Gigabit RJ45 ethernet port
• Requires included 140W DC power adapter

Specification

• Compatible Systems: Windows,MacOS
• Compatible PC Devices: Laptop
• Funtion: Card Reader,RJ45,DP,USB-A,USB-C,Thunderbolt,Charging
• Standard: Thunderbolt5
• Interface Type: USB-C HUB
• Ports: 10
• 1xTBT5 Upstream Plug: Data transfer rates up to 80Gbps, with video bandwidth reaching up to 120Gbps.
• 2xTBT5 Downstream Ports: Compliant with the Thunderbolt 5 standard, delivering a total bandwidth of up to 80Gbps, with video bandwidth reaching up to 120Gbps. Backward compatible with USB4, Thunderbolt 4, and Thunderbolt 3. Supports daisy chaining for device expansion. Provides up to 5V/3A power output. PCIe bandwidth up to 64Gbps. Supports resolutions up to 8K@60Hz. Designed for use with host devices such as laptops and computers.
• 1xDisplayPort: Compliant with DisplayPort 2.1, supporting HDCP 1.4/2.3, HDR, and DSC. Delivers resolutions up to 8K@60Hz, and is backward compatible with lower resolutions, including 4K@240/120/60Hz, 2560x1440@480/360/240/144/120/60Hz, and 1080P@480/360/240/144/120/60Hz. Designed for use with DisplayPort-enabled monitors, TVs, and other display devices.
• 3xUSB3.2-A Ports: Compliant with USB 3.2 Gen 2, delivering data transfer speeds of up to 10Gbps. Backward compatible with USB 3.0, 2.0, and 1.1 standards. Does not support BC 1.2 charging. Suitable for connecting USB devices such as keyboards, mice, and external hard drives.
• 1xRJ45 Ports: 1000/100/10Mbps
• 1xSD Port: Supports SD 3.0 standard with theoretical transfer speeds of up to 170MB/s. Supports simultaneous dual-card reading. Designed for use with SD cards.
• 1xMicro SD Port: Supports SD 3.0 standard with theoretical transfer speeds of up to 170MB/s. Supports simultaneous dual-card reading. Designed for use with Micro SD cards.
• 1xDC 5.5x2.5mm Input: Supports 100-240V wide voltage input. Includes a DC 24V/5.83A(140W) power adapter. Provides power to both the docking station and the connected host device.
• Power Supply: Requires DC power (24V/5.83A, 140W included). Not compatible with PD chargers.
• LED Indicator: Solid green when power is properly connected. Turns solid blue when a signal is detected.
• Button Function: Power Button: Turns all docking station functions on or off.
• DC Power Plug: Includes EU, US, and UK plug types, all included in the package.
• Variable Refresh Rate (VRR): Supports VRR, G-Sync, and FreeSync.
• Dolby Vision & Dolby Atmos: Support
• Supported Cable: Thunderbolt 5 (TBT5): ≤ 2m, DisplayPort (DP): ≤ 5m (28AWG).
• Supported Systems: Windows 11 (23H2) or later, macOS 14.5 or later. Other operating systems are not supported.
• Display Output Modes: Windows: Supports MST (Multi-Stream Transport), up to 3 external displays Display modes: A+A+A+A, A+B+B+B, A+B+C+D (including the built-in screen + 3 external displays). Up to dual 8K@60Hz (2 displays). Up to triple 4K@144Hz (3 displays). macOS: Supports MST (Multi-Stream Transport), up to 2 external displays Display modes: A+A+A, A+B+B, A+B+C (including the built-in screen + 2 external displays). Up to dual 8K@60Hz (2 displays).
• Built-in Cable Length: 0.8m
